Although, we have already shared different methods and tricks to enter unlock code for different modems with customized WebUI and firmware but, these methods and tricks do not work with some new devices. Especially with devices that have highly customized and secured webUI and the device does not prompt for entering unlock code and do not accept code from any previously available methods, tricks and software tools.
One best available option is Huawei HiLink (Mobile WiFi) mobile app/software which is created by Huawei itself for managing the devices through smartphones but no luck with these customized modems.
These Huawei Hilink modems are based on HiSilicon chip and work on RNDIS Technology (plug and play), which do not requires any driver installation to use internet, hence do not create COM ports in PC, when you connect it to PC with USB cable. Now, problem is that, since it does not create any COM port, and all AT commands and code entering tools work only with COM ports. It means, you can not use any Huawei Code Writer / Unlock Code Sender Tool without creating/enabling COM ports.
There are so many users who are facing problem in unlocking these customized firmware modems and requesting for some appropriate solution Finally it could become possible to unlock these devices using a combination of tools and step-by-step guide:
How to Unlock Customized Huawei Dongles, Wingles, Data Cards, Modems, 4G MiFi Router?
2. Now, install Huawei Hilink Drivers and restart computer (if required).
3. Launch Huawei HiSilicon Firmware Writer software and detect your Huawei modem
Log in screen will appear. Use your account details to login, or otherwise you have a possibility to access software with free account that will allow you only to detect device (we only required to detect modem nothing else).
Afterwards, Huawei HiSilicon Firmware writer software window will appear
Connect Huawei your modem to PC. Then wait minute or 2 until it is recognized on computer then click “Refresh” button, wait for device to be detected on software
4. In this process, one COM port will be enabled (PC UI Interface) and will be marked as yellow color if drivers are not already installed then follow guide to update hilink drivers.
Hint: In case of DC-Unlocker, don’t be confused with FC – PC UI Interface or Huawei Mobile Connect – PC UI Interface.
5. Finally, we are at unlocking stage, there are two alternate options available to enter unlock code:
A. Using DC-Unlocker
B. Huawei CardLock Unlock Tool
Hint: Choose one which best suits you

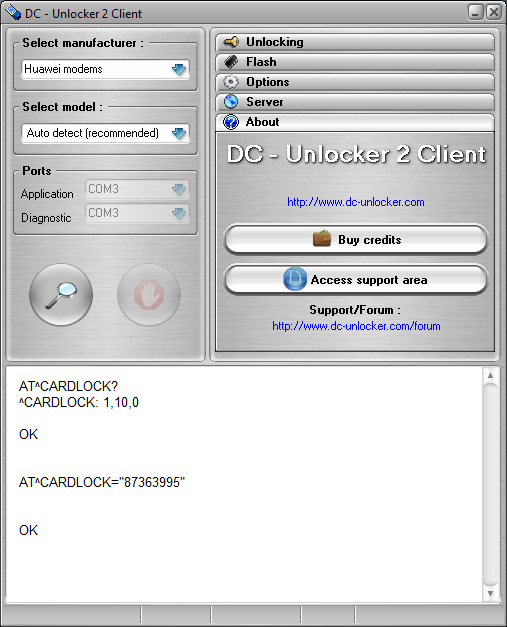

A. To unlock modem launch DC-unlocker client software
Detect device by selecting Huawei modems from manufacturers drop down menu list, then click magnifying glass button, it will show the Application and Diagnostic port. Means, you have correctly done above all the procedures.
Wait till program detects modem
Hint: Now disconnect your internet connection
Issue the following command :
Hint: Replace XXXXXXXX with your 8 digits unlock code corresponding to the IMEI.
Wait for device to be unlocked
If you get OK in the screen, then start dancing around the room. It is unlocked forever.
B. To unlock modem launch CardLock_UnLock
It’s a very effective unlocking utility to send the unlock code for Huawei modems, this application is also supports almost all latest modems, routers and and like Huawei E52xxx, E53xxx, E54xxx, E55xxx, E56xxx, E57xxx, E58xxx, E83xxx, B3xxx, B4xxx, B5xxx, etc..
Hint: In case of CardLock_UnLock, Huawei Mobile Connect – PC UI Interface is required otherwise it will result in following error. IMEI of your device will not automatically shown, it means that your Huawei COM port drivers are not installed appropriate with this software.
FC – PC UI Interface needs to be updated with Huawei Mobile Connect – PC UI Interface, then follow guide to update hilink drivers.
Now after drivers update, relaunch CardLock_UnLock, if IMEI of your device is automatically shown, it means that your com ports are properly installed
Now put 8 digits unlock code into CardLock_UnLock software and click on « OK ».
Note: Above mentioned method / procedure can be used with all Huawei devices which does not have any COM ports and does not ask you for unlock code / NCK.
Unlock code is not free, you have to pay for unlock code (NCK). If Interested then pay in Paypal id firstname.lastname@example.org $5 USD for Algo V3 and $6 USD for Algo V4 (complete list of Algorithms compatible with different devices is available here) and mention model with IMEI in transaction.
